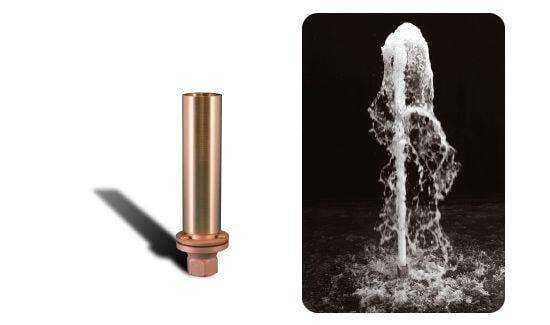

Foam Jet Fountain Nozzle product photo and water effect

Foam Jet

FOM Series Foam fountain nozzle provided a highly aerated foamy column of water.

Product Specification

FOM Series Foam Nozzle, water level independent effect, machined brass and cast bronze construction with stainless steel fasteners, and includes integral alignment swivel with 15° of adjustibility from center, 30° total. FNPT connection.
  • Water Level Dependent – No
  • Wind Resistance – Good
  • Sound Level – Moderate
  • Clogging Potential – Moderate
  • Splash Radius – 1.0
  • Material: Machined brass and cast bronze
  • Finish: Natural brass and bronze

Technical Notes

  1. BALL VALVE AS REQUIRED PER DESIGN FOR DISCHARGE FLOW CONTROL.
  2. WATERSTOP FITTING REQUIRED FOR CONCRETE POUR. SIZE BASED ON PIPING AND NOZZLE SIZE. (SEE CATALOG ITEM: FWS-SERIES)
  3. TYPICAL WATER DEPTH SHOWN MAY VARY. CONTACT FOUNTAIN PEOPLE FOR SHALLOWER APPLICATIONS.
  4. THIS NOZZLE IS WATER LEVEL INDEPENDENT.
  5. NOZZLE REQUIRES FINE SCREENING FOR DEBRIS REMOVAL. #40 MINIMUM MESH OR SMALLER.

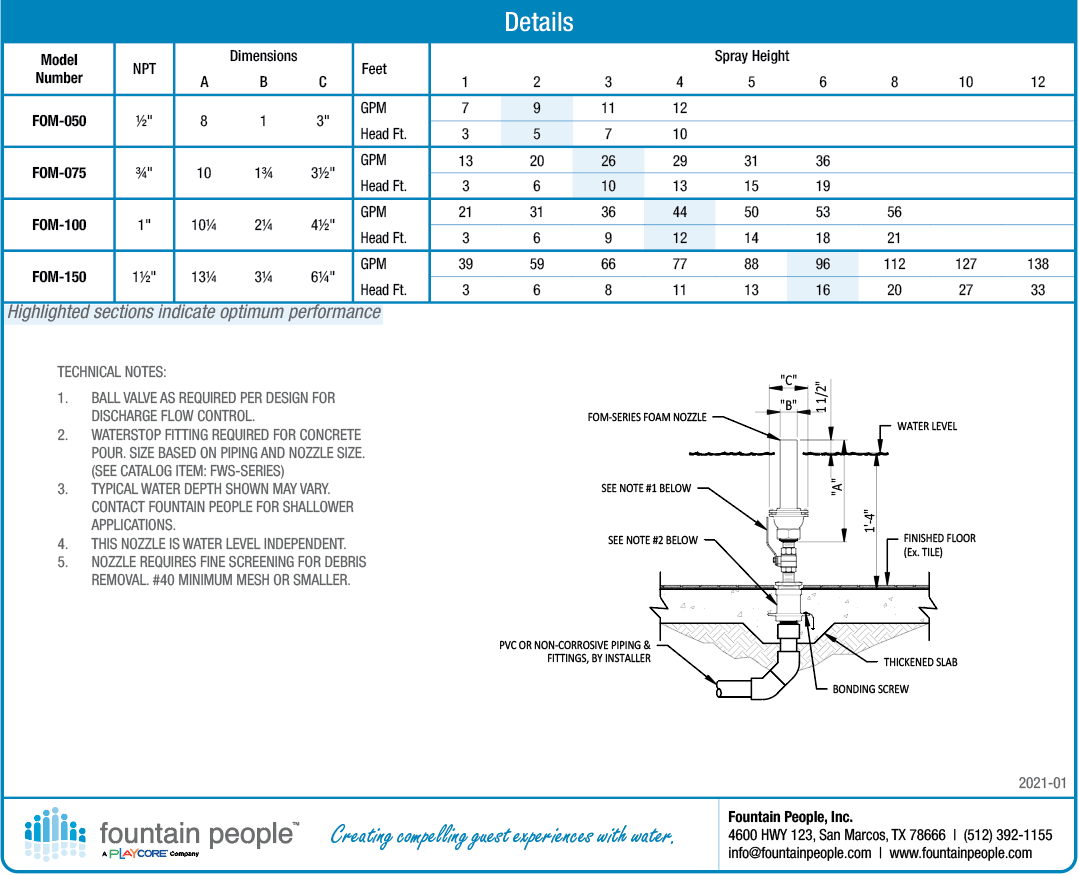

Foam Jet Fountain Nozzle product data chart
