Vee Jet

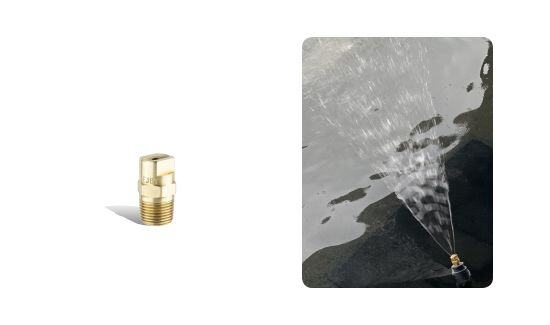

The VEN Series Vee Nozzle provides a clear, fan-shaped sheet of water. This nozzle can be mounted in a vertical or horizontal position.
Product Specification
VEN Series Vee fountain nozzle, one-piece brass construction, water level independent spray effect. MNPT connection.
- Water Level Dependent – No
- Wind Resistance – Poor
- Sound Level – Low
- Clogging Potential – Moderate
- Splash Radius – 1.5
- Material: Machined brass
- Finish: Natural brass
Technical Notes
- Ball valve as required per design for discharge flow control.
- Waterstop fitting required for concrete pour. Size based on piping and nozzle size. (See catalog item: FWS-SERIES)
- Typical water depth shown may vary. Contact Fountain People for shallower applications.
- Fine screening at pump, half the diameter of jet orifice or smaller to minimize nozzle clogging is recommended.

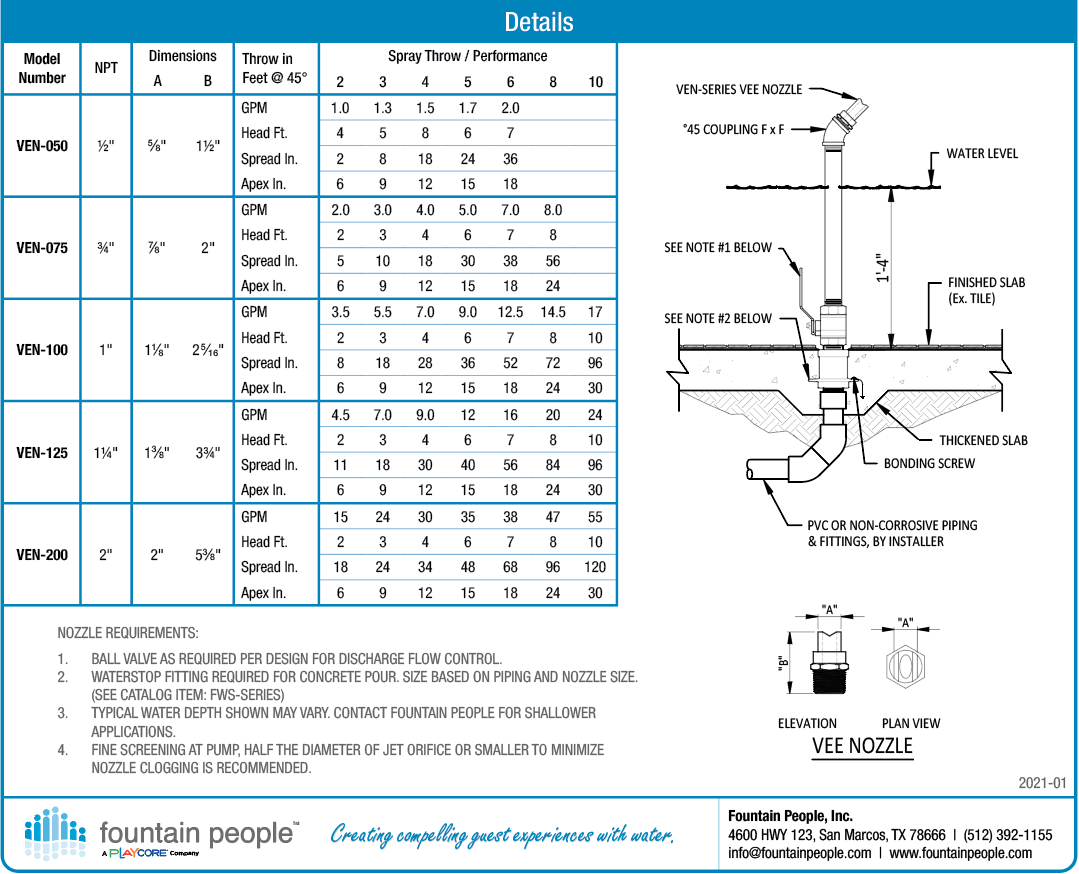

Details
