Smooth Bore

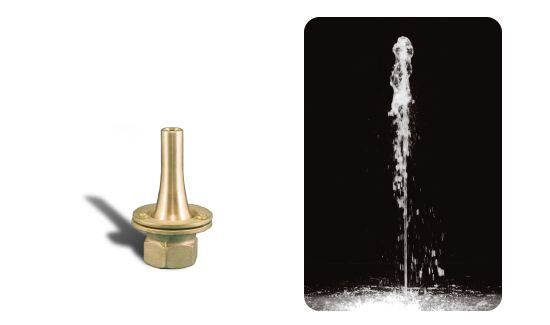

SBN Series Smooth Bore Nozzle, machined cast bronze construction with stainless steel fasteners and includes integral angle adjustable swivel up to 15° off vertical. FNPT connection.

Product Specification

  • Water Level Dependent – No
  • Wind Resistance – Good
  • Sound Level – Moderate
  • Clogging Potential – Low
  • Splash Radius – 1.0
  • Material: Machined cast bronze
  • Finish: Natural bronze

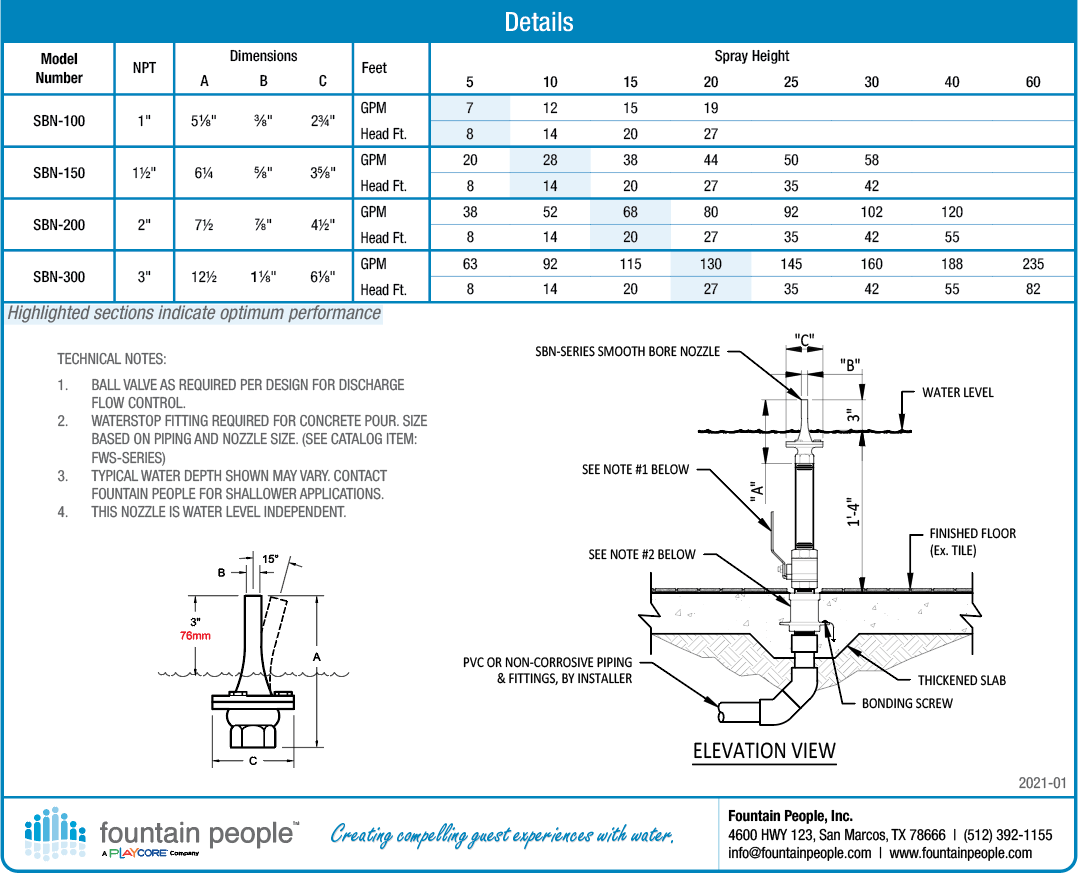

Technical Notes

  1. Ball valve as required per design for discharge flow control.
  2. Waterstop fitting required for concrete pour. Size based on piping and nozzle size. (See catalog item: FWS-SERIES)
  3. Typical water depth shown may vary. Contact Fountain People for shallower applications.
  4. This nozzle is water level independent.
