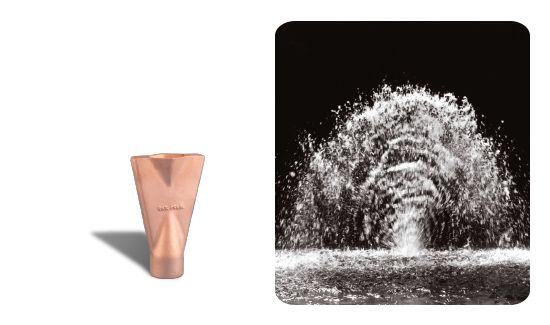

PEA Series Peacock Nozzle provides a unique fan-shaped water effect, similar in shape of a Peacock’s tail.

Product Specification

PEA Series Peacock Nozzle, machined cast bronze construction, fabricated as open slot with additional diamond flared center for higher volume flow characteristics. FNPT connection.
  • Water Level Dependent – Yes
  • Wind Resistance – Fair to Good
  • Sound Level – High
  • Clogging Potential – Low
  • Splash Radius – 2.0
  • Material: Machined cast bronze
  • Finish: Natural bronze

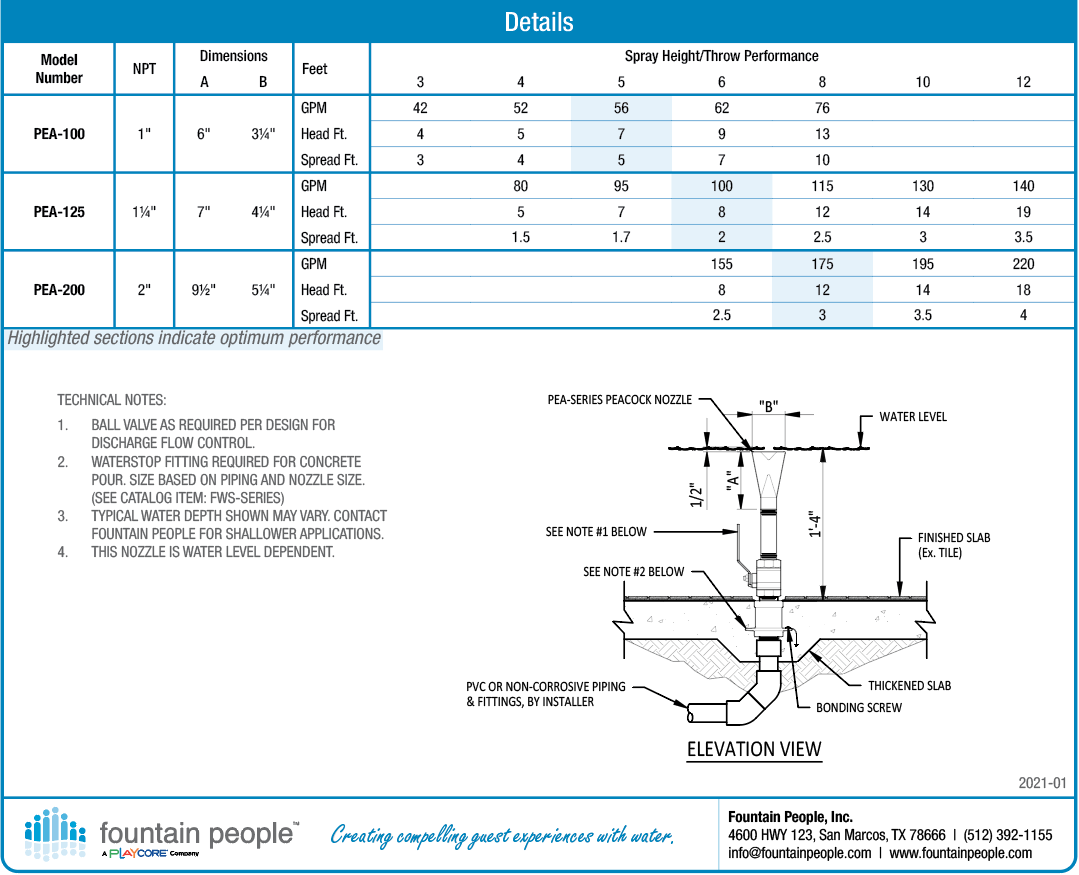

Technical Notes

  1. Ball valve as required per design for discharge flow control.
  2. Waterstop fitting required for concrete pour. Size based on piping and nozzle size. (See catalog item: FWS-SERIES)
  3. Typical water depth shown may vary. Contact Fountain People for shallow applications.
  4. This nozzle is water level dependent.
