Morning Glory

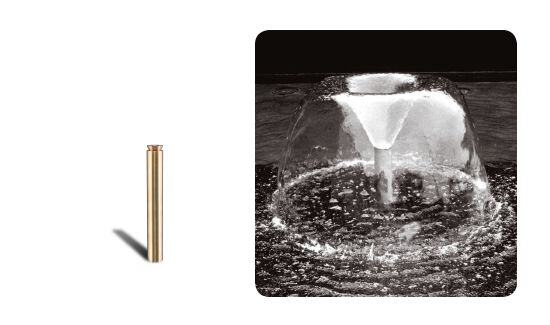

MGLO Series Morning Glory Nozzle, brass construction, water level independent spray effect, has integral cone that allows the water effect to be adjusted from a full sheet to a half sheet. MNPT connection.

Product Specification

  • Water Level Dependent – No
  • Wind Resistance – Fair
  • Sound Level – Low to Moderate
  • Clogging Potential – Low
  • Splash Radius – 1.5
  • Material: Machined brass and cast bronze
  • Finish: Natural brass and bronze

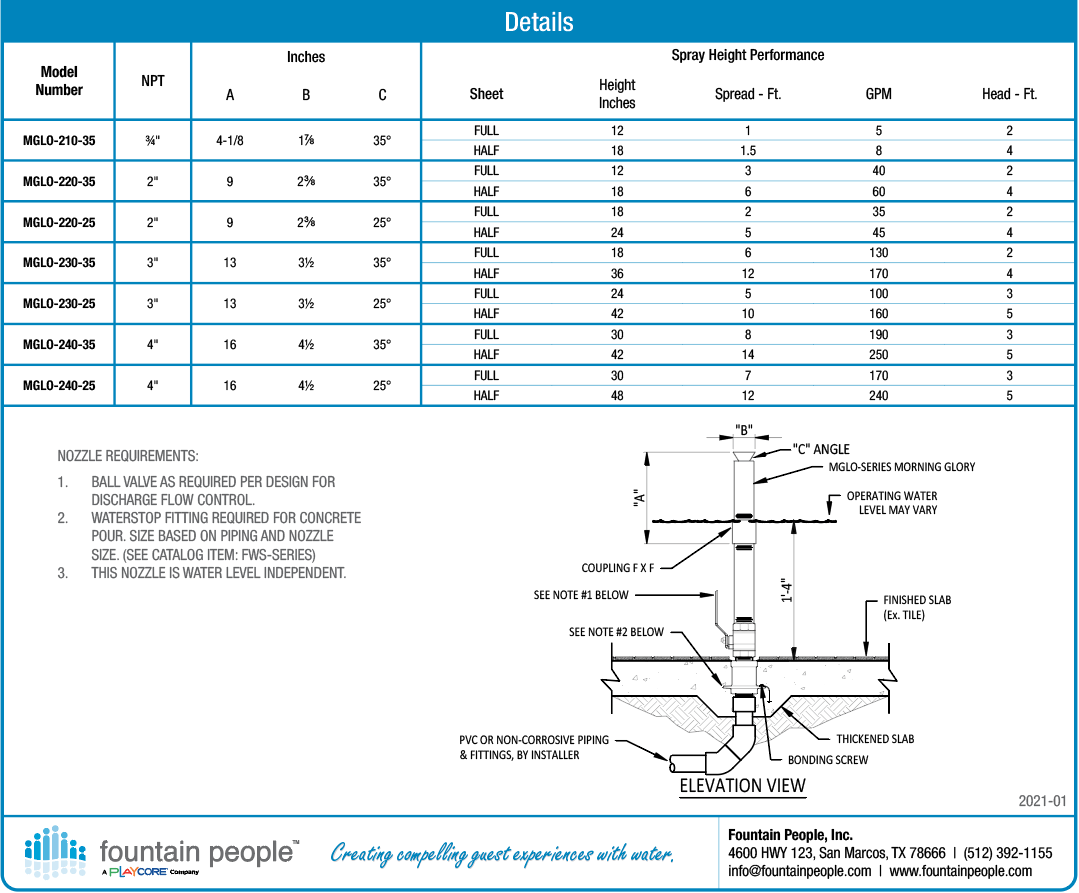

Technical Notes

  1. Ball valve as required per design for discharge flow control.
  2. Waterstop fitting required for concrete pour. Size based on piping and nozzle size. (See catalog item: FWS-SERIES)
  3. This nozzle is water level independent.
