Hollow Bore

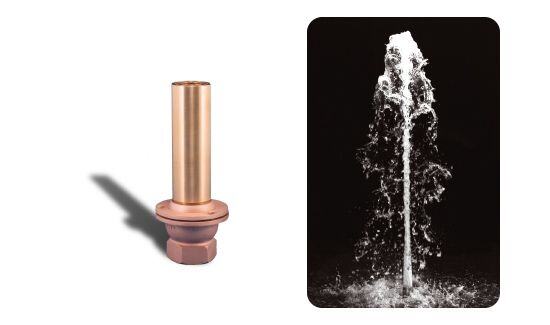

The Hollow Bore Nozzle creates a frothy aerated stream of water.

Product Specification

HBN Series Hollow Bore Nozzle, is machined brass construction with stainless steel fasteners, and includes integral alignment swivel with 15° of adjustability from center, 30° total. FNPT connection.
  • Water Level Dependent – No
  • Wind Resistance – Good
  • Sound Level – Moderate
  • Clogging Potential – Moderate
  • Splash Radius – 1.0
  • Material: Machined brass and cast bronze
  • Finish: Natural brass and bronze

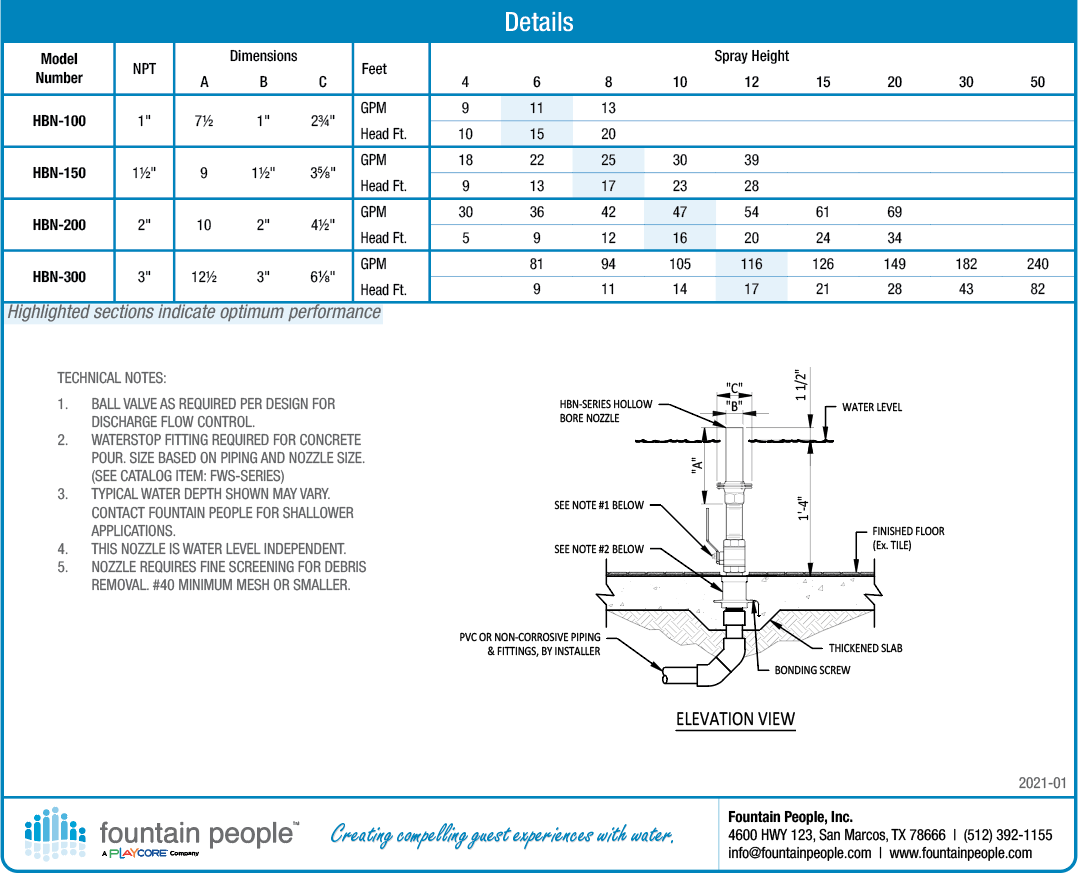

Technical Notes

  1. BALL VALVE AS REQUIRED PER DESIGN FOR DISCHARGE FLOW CONTROL.
  2. WATERSTOP FITTING REQUIRED FOR CONCRETE POUR. SIZE BASED ON PIPING AND NOZZLE SIZE. (SEE CATALOG ITEM: FWS-SERIES)
  3. TYPICAL WATER DEPTH SHOWN MAY VARY. CONTACT FOUNTAIN PEOPLE FOR SHALLOWER APPLICATIONS.
  4. THIS NOZZLE IS WATER LEVEL INDEPENDENT.
  5. NOZZLE REQUIRES FINE SCREENING FOR DEBRIS REMOVAL. #40 MINIMUM MESH OR SMALLER.
