Flush Mount Jet Cluster

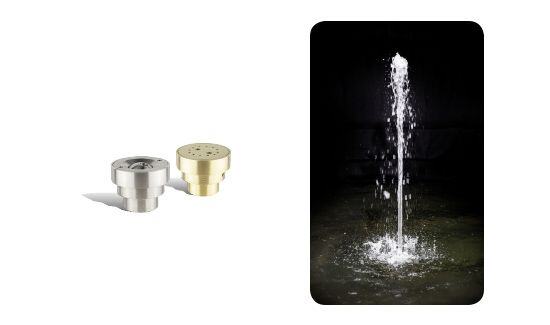

FMN-JC Series (Jet Cluster) Flush Mount Nozzle produces a cluster of solid streams which, when vertically aligned, create the effect of a column of water from a flush mounted configuration.

Product Specification

FMN-JC Series (Jet Cluster) Flush Mount Nozzle, machined 304 stainless steel, 1” FNPT connection, and a stainless steel insert with machined orifice. Available in brass.
  • Material: Machined stainless steel or brass
  • Finish: Stainless steel or natural brass

Technical Notes

  1. Waterstop fitting required for concrete pour. Size based on piping and nozzle size. (See catalog item: FWS-SERIES)
  2. Nozzle requires fine screening for debris removal. #40 minimum mesh or smaller.
  3. This nozzle is water level dependent.
