Finger Jet

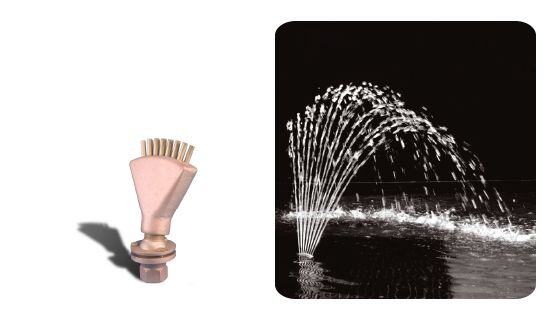

FIN Finger Jet Nozzle, machined cast bronze and brass construction, has an integral adjustment swivel up to 15° off vertical, and uses multiple precision jets. An in-line Y-strainer is recommended to reduce maintenance.

Product Specification

  • Water Level Dependent – No
  • Wind Resistance – Fair
  • Sound Level – Moderate
  • Clogging Potential – Moderate
  • Splash Radius – 1.5
  • Material: Machined cast bronze and brass
  • Finish: Natural bronze and brass

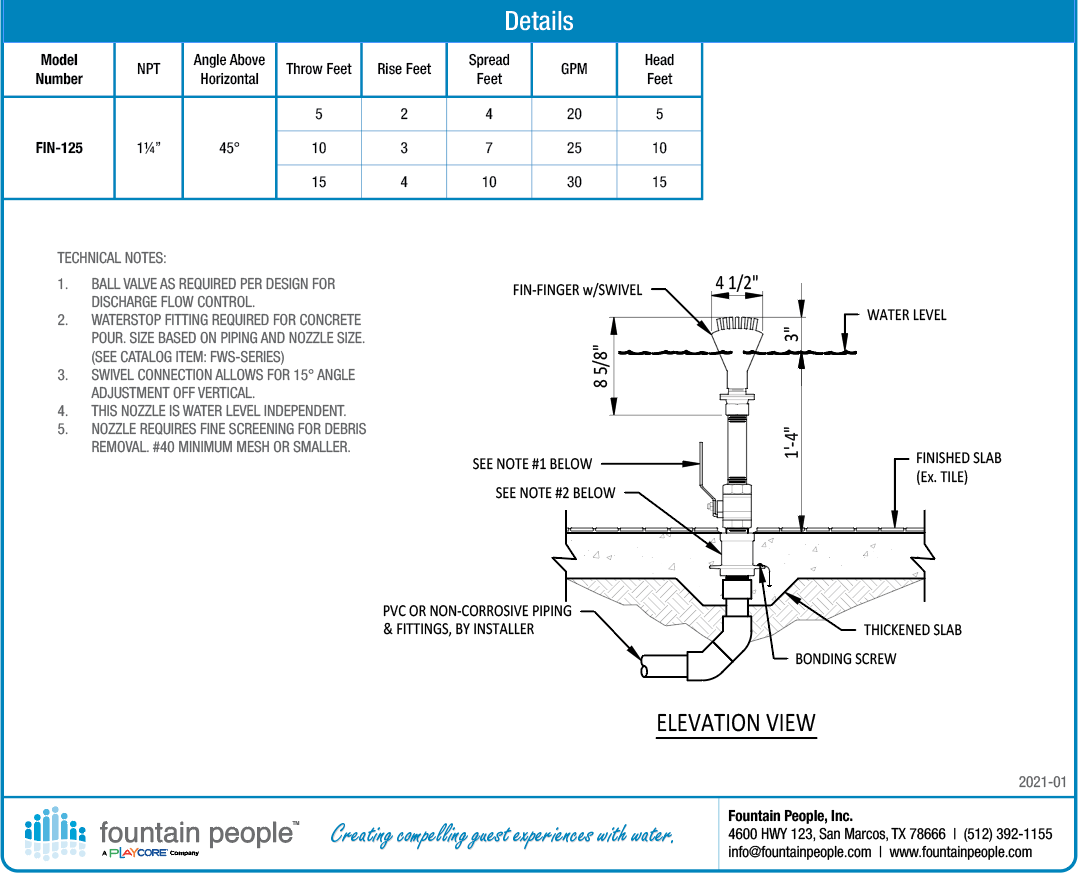

Technical Notes

  1. Ball valve as required per design for discharge flow control.
  2. Waterstop fitting required for concrete pour. Size based on piping and nozzle size. (See catalog item: FWS-SERIES)
  3. Swivel connection allows for 15 degree angle adjustment off vertical.
  4. This nozzle is water level independent.
  5. Nozzle requires fine screening for debris removal. #40 minimum or smaller.
