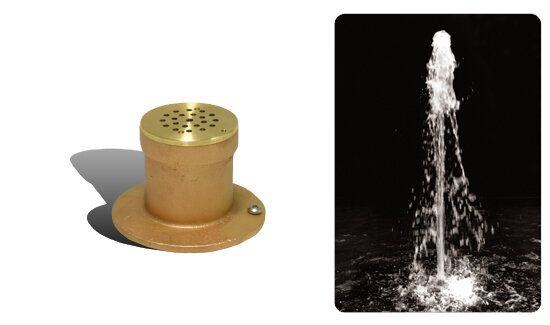

EPF Series Flush Mount Jet Cluster with Waterstop

The EPF Series Flush Jet Cluster creates a medium column of water made up of multiple solid streams from a flush mounted configuration with machined orifices.

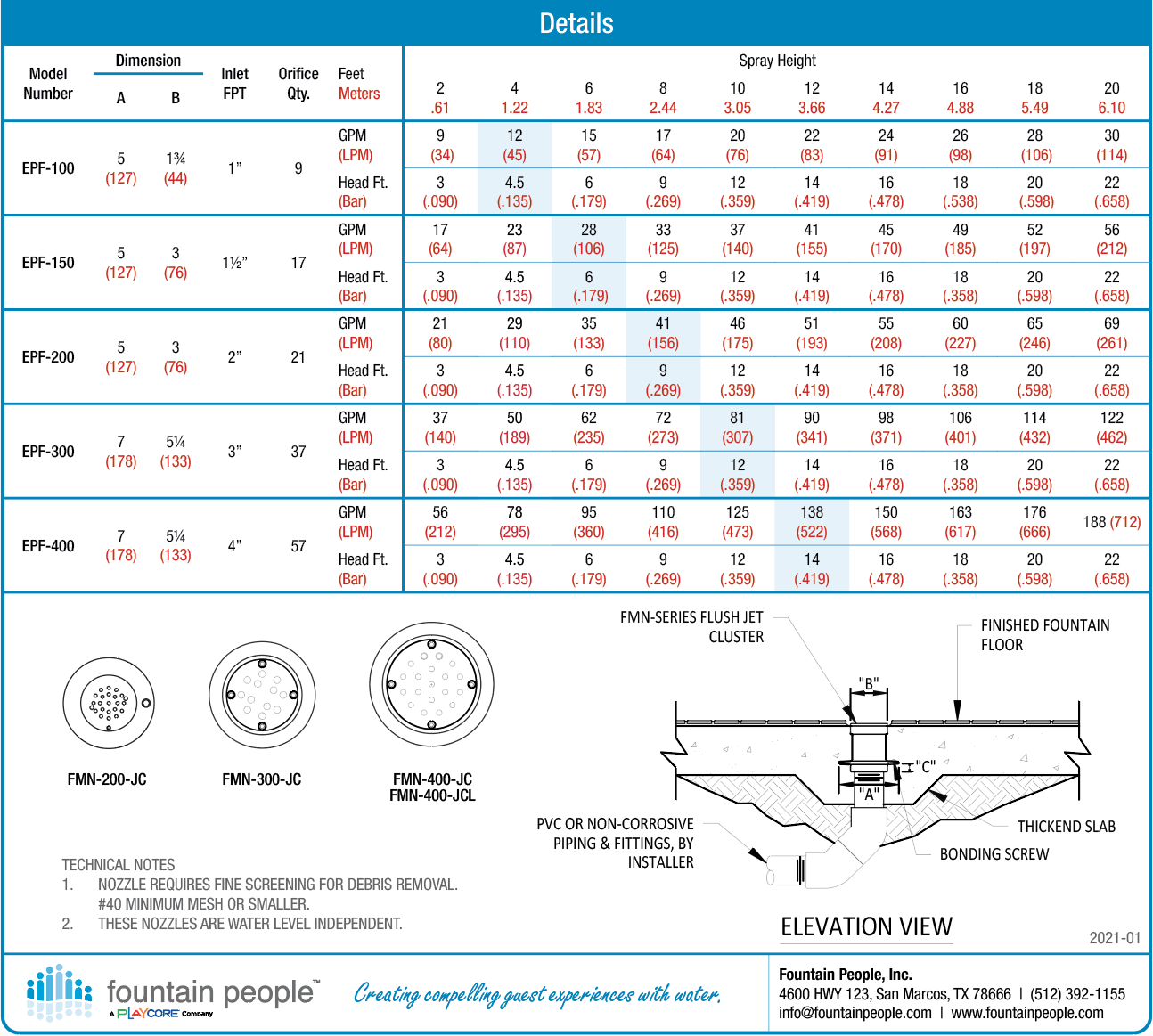

Product Specification

EPF Series (Jet Cluster) Flush Mount Nozzle; cast bronze waterstop housing with FNPT bottom connection, and a machined brass threaded insert with machined orifices.
  • Water Level Dependent – No
  • Wind Resistance – Good
  • Sound Level – Moderate
  • Clogging Potential – Moderate
  • Splash Radius – 1.0
  • Material: Machined brass
  • Finish: Natural brass

Technical Notes

  1. NOZZLE REQUIRES FINE SCREENING FOR DEBRIS REMOVAL. #40 MINIMUM MESH OR SMALLER.
  2. THESE NOZZLES ARE WATER LEVEL INDEPENDENT.
