Aerator
Water Effect

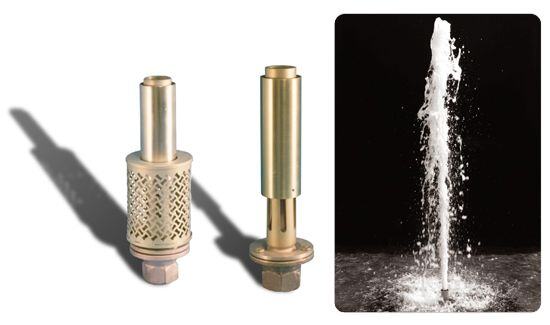

The traditional Aerator creates a frothy stream of water.
Construction
Constructed of machined brass and cast bronze, this is water level dependent fountain nozzle that requires a constant water level for proper operation. A trash screen may be appropriate to prevent debris from clogging the nozzle. To add a stainless steel trash screen to nozzle, delete suffix –L from catalog number (not available for N-147L).
Product Specification
- Water Level Dependent – Yes
- Wind Resistance – Good
- Sound Level – Moderate
- Clogging Potential – Low
- Splash Radius – 1.0
- Material: Machined brass and cast bronze
- Finish: Natural brass and bronze
Technical Notes
- BALL VALVE AS REQUIRED PER DESIGN FOR DISCHARGE FLOW CONTROL.
- WATERSTOP FITTING REQUIRED FOR CONCRETE POUR. SIZE BASED ON PIPING AND NOZZLE SIZE. (SEE CATALOG ITEM: FWS-SERIES)
- TYPICAL WATER DEPTH SHOWN MAY VARY. CONTACT FOUNTAIN PEOPLE FOR SHALLOWER APPLICATIONS.
- MAY REQUIRE WAVE BAFFLE FOR SYMMETRICAL SHAPED POOLS. CONSULT FOUNTAIN PEOPLE FOR SPECIFIC APPLICATIONS.
- THIS NOZZLE IS WATER LEVEL DEPENDENT.
