Wall Mounted Overflow and Sensor

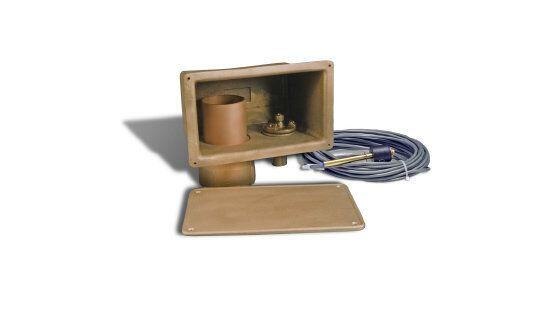

CWL-002WD is a combined wall mounted overflow drain and water level sensor. The assembly allows for a flush-mounted application of the system overflow standpipe and the water level sensor probe to be concealed behind a protective face plate. Typical use of the dual function sensor allows for automatic water fill valve control and low water pump shut off. Dimensions: 10” Diameter x 21/2” Projection

Product Specification

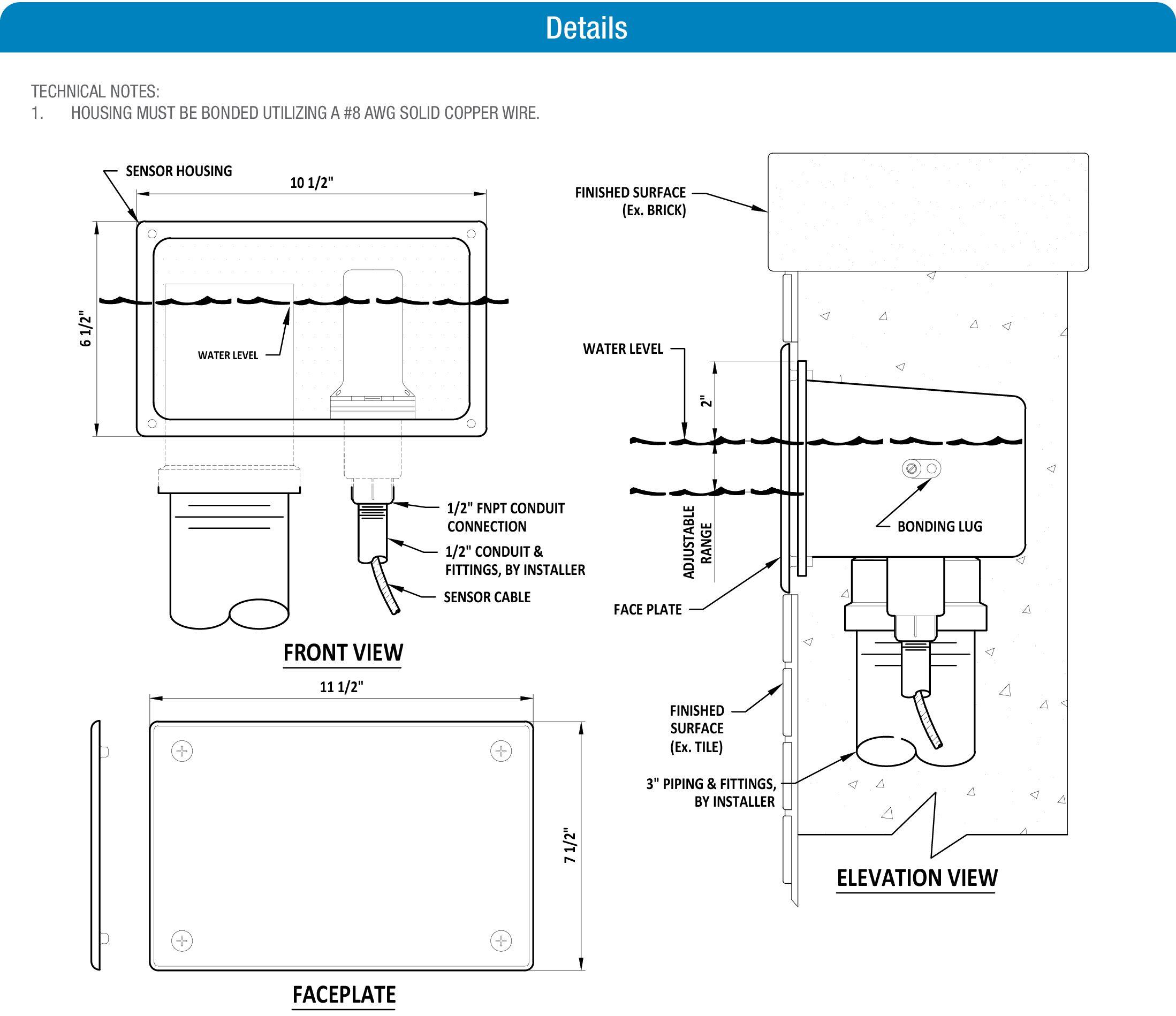

CWL-002WD Wall Mounted Overflow / Sensor; consists of a flush cast-in wall housing with threaded conduit entry, adjustable sensor holder, adjustable standpipe overflow drain assembly and protective raised face plate. Adjustment range for both standpipe and sensor is 1/2”. Includes 3” and 1/2” female threaded connections for the drain and sensor (100 feet of sensor cable included). Construction is cast bronze with a machined brass sensor holder and stainless steel fasteners. Finish is natural bronze and brass

Technical Notes

  1. Housing must be bonded utilizing a #8 AWG solid copper wire.
